Product Details

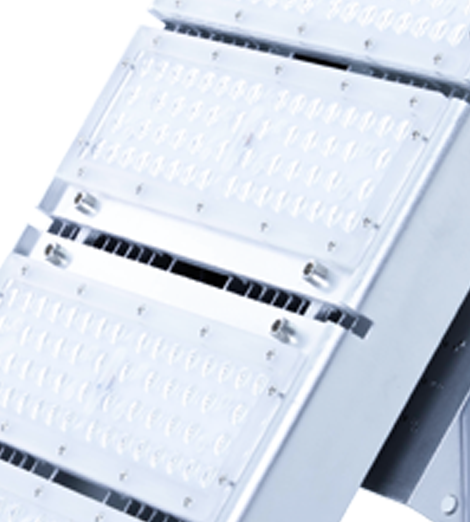

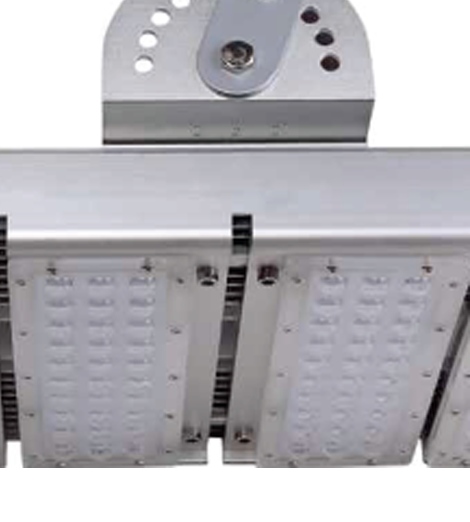

TITAN E
Flood Light is a range of highly reliable energy-efficient led but deliver long-lasting performance, The floodlights available with us save 90% energy, have high lumen output and light weight with robust die-cast aluminium housing & corrosion-proof suitable for general outdoor application.
Brand: Fabae Lightings
Type : Outdoor Light
Power : 50W, 100W, 150W, 200W, 250W
Application : Stadium lighting, Stadium lightings, Outdoor lighting, Sport venue lighting, Landscape lighting, Courtyards
General Specification
Lamp : Integral LED, SMD
CCT : 3000K/4000K/6000K
CRI : >80
SDCM BINNING : <5
LED Life Time : >50,000h
LED Lm/W of Chip : 120-150 lm/W
Ambient Temperature : -20°C to 50°C
Storage Temperature : -20°C to 70°C
Humidity : RH 10% - 90%
IP Rating : IP65
Dimming : Possible
Body Color : Grey
Tiltable : Yes
Mounting : -
Driver : Constant Current
Input Voltage : AC 100~240 V
Input frequency : 50/60 Hz
Power Factor : >0.9
THD : <15%

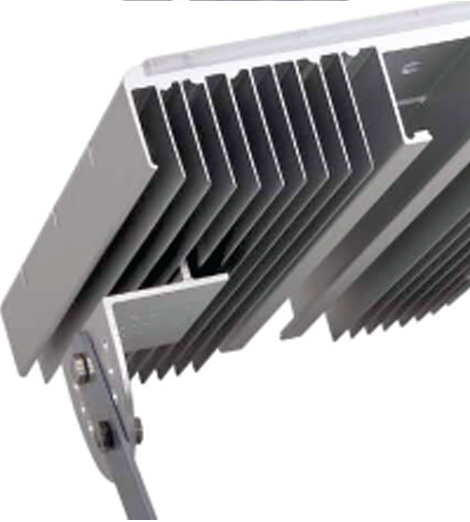

Housing Material : High Pressure Die-cast aluminum
Lens : Poly carbonate lens
Cover :
Prodcut Code & Specification
Product Code | POWER | LUMENS | BEAM ANGLE | DIMENSION (MM) |
---|---|---|---|---|
FB-TTE.50 | 50W | 6000lm | 110° | L:170, W:285, H:60 |
FB-TTE.100 | 100W | 12000lm | 110° | L:170, W:285, H:60 |
FB-TTE.150 | 150W | 18000lm | 110° | L:255, W:285, H:60 |
FB-TTE.200 | 200W | 24000lm | 110° | L:340, W:285, H:60 |
FB-TTE.250 | 250W | 30000lm | 110° | L:450, W:285, H:60 |
