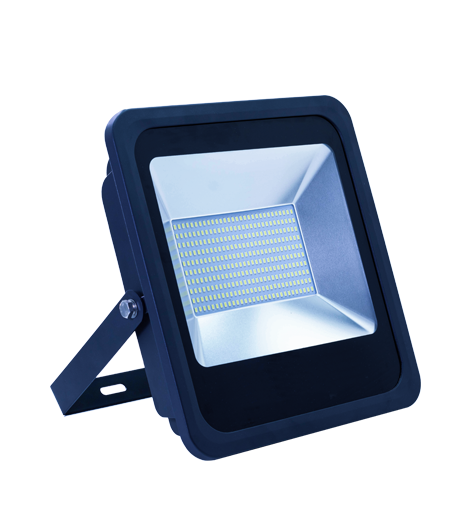

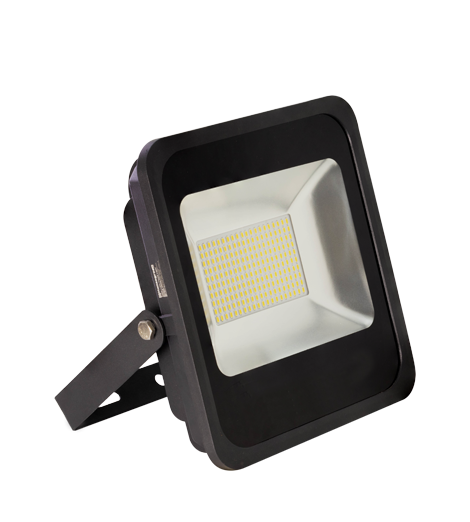

TITAN N
Flood Light its range of highly reliable energy-efficient led but deliver long-lasting performance, The floodlights available with us save 90% energy, have high lumen output and light weight with robust die- cast aluminium housing & corrosion proof suitable for general outdoor application
Brand: Fabae Lightings
Type : Outdoor Light
Power : 50W, 100W, 150W, 200W, 400W
Application : Courtyards, Indoor stadiums, Outdoor stadiums, Residential areas, Industrial premises
General Specification

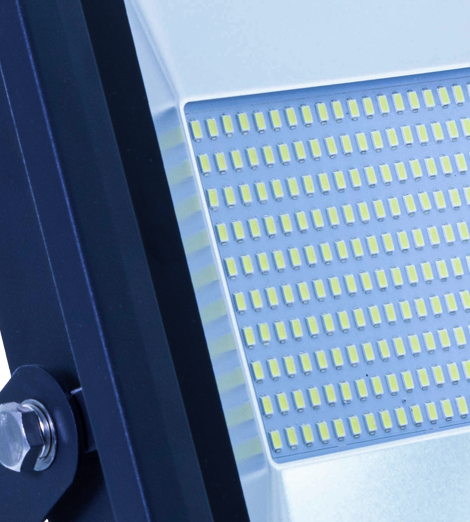

Lamp : Integral LED, SMD
CCT : 3000K/4000K/6000K
CRI : >80
SDCM BINNING : <5
LED Life Time : >50,000h
LED Lm/W of Chip : 130-120 lm/W
Ambient Temperature : -20°C to 50°C
Storage Temperature : -40°C to 70°C
Humidity : RH 10% - 90%
IP Rating : IP65
Dimming : -
Body Color : Dark Grey
Tiltable : Yes
Mounting : -
Driver : Constant Current
Input Voltage : AC 100~240 V
Input frequency : 50/60 Hz
Power Factor : >0.9
THD : <15%
Housing Material : High Pressure Die-cast aluminum
Lens : -
Cover : Tempered Glass cover
Prodcut Code & Specification
Product Code | POWER | LUMENS | BEAM ANGLE | DIMENSION (MM) |
---|---|---|---|---|
FB-TTN.50 | 50W | 6000lm | 100° | L:280, W:270, H:75 |
FB-TTN.100 | 100W | 12000lm | 100° | L:280, W:300, H:75 |
FB-TTN.150 | 150W | 18000lm | 100° | L:335, W:365, H:85 |
FB-TTN.200 | 200W | 24000lm | 100° | L:403, W:434, H:90 |
FB-TTN.400 | 400W | 48000lm | 110° | L:665, W:325, H:300 |
