Product Details

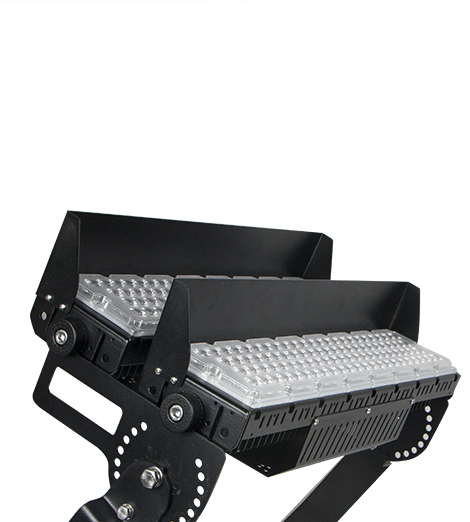

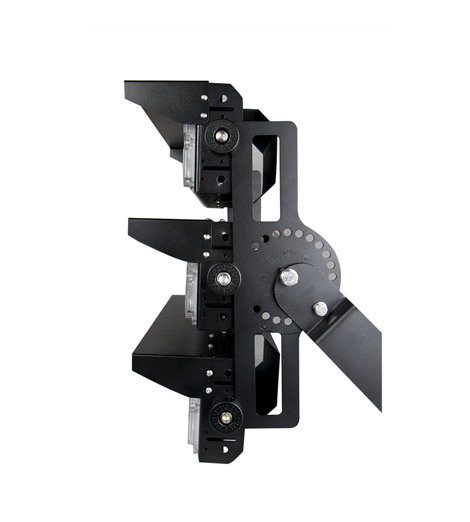

TITAN LX
High Mast Heavy-duty performance for a high-end application, High mast lighting High reliable energy-efficient Lighting Solutions Wider range of Outdoor/Indoor Areas and Low cost, Excellent optics with impact-resistant tempered glass and anti-glare diffuser. it provides better and brighter illumination and also enables easier installation and maintenance of Lights due to motorized controls that lower and raise the Lights.
Brand: Fabae Lightings
Type : Outdoor Light
Power : 250W, 500W, 750W, 1000W, 1250W, 1500W
Application : Railway yards, Dockyards, Road Junctions, Toll Plazas, Warehouses, Stadium, Storage, Sport area lighting and Hanger Lighting
General Specification
Lamp : Integral LED, SMD
CCT : 3000K/4000K/6000K
CRI : >80
SDCM BINNING : <5
LED Life Time : >50,000h
LED Lm/W of Chip : 120-160 lm/W
Ambient Temperature : -20°C to 50°C
Storage Temperature : -40°C to 70°C
Humidity : RH 10% - 90%
IP Rating : IP66
Dimming : Possible
Body Color : Black
Tiltable : Yes
Mounting : -
Driver : Constant Current
Input Voltage : AC 100~305V
Input frequency : 50/60 Hz
Power Factor : >0.9
THD : <15%
Housing Material : High Pressure Die-cast aluminum
Lens : Polycarbonate Lens
Cover :
Prodcut Code & Specification
Product Code | POWER | LUMENS | BEAM ANGLE | DIMENSION (MM) |
---|---|---|---|---|
FB-TTLX.250 | 250W | 32500lm | 60°/90°/120° | L:550, W:140, H:240 |
FB-TTLX.500 | 500W | 65000lm | 60°/90°/120° | L:550, W:280, H:240 |
FB-TTLX.750 | 750W | 97500lm | 60°/90°/120° | L:550, W:420, H:240 |
FB-TTLX.1000 | 1000W | 130000lm | 60°/90°/120° | L:550, W:560, H:240 |
FB-TTLX.1250 | 1250W | 162500lm | 60°/90°/120° | L:550, W:- , H:- |
FB-TTLX.1500 | 1500W | 195000lm | 60°/90°/120° | L:550 , W:-, H:- |
Downloads
