Product Details

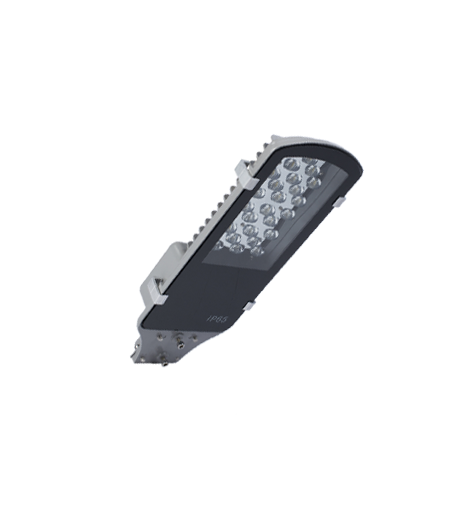

CALLE UL
Street light which comes with compact & sturdy design, light weight with robust die-cast aluminium housing & corrosion-proof suitable for general outdoor applications. Classy design with better heat dissipation and It is one of the fast-moving street lights.
Brand: Fabae Lightings
Type : Outdoor Light
Power : 12W, 24W, 50W, 80W, 100W, 120W, 150W
Application : Streets, Parks, Parking, Residential areas
General Specification
Lamp : Integral LED, SMD
CCT : 3000K/4000K/6000K
CRI : >80
SDCM BINNING : <5
LED Life Time : >50,000h
LED Lm/W of Chip : 130-120 lm/W
Ambient Temperature : -20°C to 50°C
Storage Temperature : -40°C to 70°C
Humidity : RH 10% - 90%
IP Rating : IP65
Dimming : Possible
Body Color : Grey
Tiltable : -
Mounting : -
Driver : Constant Current
Input Voltage : AC 100~240 V
Input frequency : 50/60 Hz
Power Factor : >0.9
THD : <15%
Housing Material : High Pressure Die-cast aluminum
Lens : Poly carbonate convex lens
Cover : Tempered Glass cover
Prodcut Code & Specification
Product Code | POWER | LUMENS | BEAM ANGLE | DIMENSION (MM) |
---|---|---|---|---|
FB-CALUL.12 | 12W | 1200lm | 90° | L:350, W:97, H:60, PD:60 |
FB-CALUL.24 | 24W | 2400lm | 90° | L:390, W:140, H:60, PD:60 |
FB-CALUL.50 | 50W | 5000lm | 110° | L:525, W:225, H:50, PD:60 |
FB-CALUL.80 | 80W | 8000lm | 90° | L:550, W:255, H:60, PD:60 |
FB-CALUL.100 | 100W | 12000lm | 90° | L:580, W:255, H:85, PD:60 |
FB-CALUL.120 | 120W | 14400lm | 90° | L:690, W:300, H:85, PD:60 |
FB-CALUL.150 | 150W | 18000lm | 100° | L:780, W:300, H:85, PD:60 |
